New
Mug 4-station transfer press - to order
4-station mug press MUG 4
The MUG 4 press is an advanced transfer press designed for high-volume printing on mugs. Professional sublimation press with four independent heaters.
Multi-station mug sublimation press
Customised device - contact the export department:
tel.: 58 55 43 569 or e-mail: export@grawerton.pl
Specyfication:
| SERIES: | Schulze |
| TYPE OF PRESS: | Manual |
Details can be found later in this description.
local_shipping WORLDWIDE SHIPPING
Shipping
Privacy policy

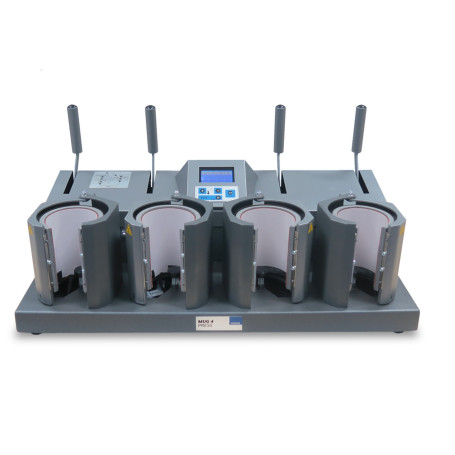

SCHULZE Mug 4 Press sublimation press
The SCHULZE Mug 4 Press is an advanced thermal transfer press for the intensive production of sublimation prints on mugs, conical cups or beer mugs. The machine is dedicated to companies with serial orders, advertising studios and photo gift manufacturers, where the combination of high productivity and reproducible print quality is crucial.
The press is equipped with four independent heaters that allow sublimation to be performed simultaneously on four cups. Each heating element has its own pressure adjustment, so that the pressure can be precisely adapted to the characteristics of the specific cup model. The shock absorbing springs used allow the pressure to be automatically equalised, which is particularly important for cups with minimally different diameters. This solution increases the life of the heaters and eliminates the risk of uneven graphic transfer.
As standard, the press is supplied with heaters for 80 mm diameter mugs, but thanks to the modular design, it is possible to replace the heating elements with many other variants. In this way, one unit handles a wide range of products, significantly increasing production flexibility.
The SCHULZE Mug 4 Press is characterised by its stable construction, long service life, fast heat-up time and ergonomic operation in batch production conditions. Precise temperature and time control enables perfect colour and sharpness reproduction even with complex graphics, resulting in a professional, reproducible result.
The press is equipped with four independent heaters that allow sublimation to be performed simultaneously on four cups. Each heating element has its own pressure adjustment, so that the pressure can be precisely adapted to the characteristics of the specific cup model. The shock absorbing springs used allow the pressure to be automatically equalised, which is particularly important for cups with minimally different diameters. This solution increases the life of the heaters and eliminates the risk of uneven graphic transfer.
As standard, the press is supplied with heaters for 80 mm diameter mugs, but thanks to the modular design, it is possible to replace the heating elements with many other variants. In this way, one unit handles a wide range of products, significantly increasing production flexibility.
The SCHULZE Mug 4 Press is characterised by its stable construction, long service life, fast heat-up time and ergonomic operation in batch production conditions. Precise temperature and time control enables perfect colour and sharpness reproduction even with complex graphics, resulting in a professional, reproducible result.
Key features of the Mug 4 Press
- Four independent heaters allow simultaneous printing on 4 mugs.
- The modular design of the heaters allows the press to be adapted to a wide range of cups.
- Pressure adjustment for each heater ensures a perfect match to the diameter of the cup.
- Cushioning springs balance the pressure and increase the life of the heaters.
- Efficient batch operation works well in B2C production processes.
- Precise temperature control 0-200°C.
- Robust metal construction ensures stability and durability of the unit.
- Wide heater compatibility allows printing on straight cups, conical cups, enamel cups and beer mugs.
Who is the SCHULZE Mug 4 for?
The SCHULZE Mug 4 Press is designed for intensive, professional sublimation production in printing companies, advertising studios, product personalisation outlets and photo gift companies. It is ideal for large jobs such as promotional gadget series, corporate products, event gifts or retail collections. With the ability to handle multiple heater types, one unit covers most production needs.
User manual:
copyright
Adapt the device to your needs
Optional heating elements available on request.
- Heater for mugs with a diameter of 62 mm,
- Heater for mugs with a diameter of 72 mm,
- Heater for mugs with a diameter of 80 mm,
- Heater for mugs with a diameter of 80 mm PLUS,
- Heater for low "latte" mugs with cone dimensions: bottom base 65 mm, top 93 mm and height 103 mm,
- Heater for mugs with a diameter of 95 mm.
- Heater for enamelled mugs with a diameter of 80 mm.
Details:
| SERIES: | Schulze |
| DIMENSIONS: | 70 x 35 x 34 cm |
| WEIGHT: | 23 kg |
| POWER: | 1,3 kW |
| SUPPLY: | 230 VAC |
| MAX. TEMPERATURE: | 200℃ |
| WARM-UP TIME: | 1 s. - 99 min. 59 s. |
| HEATER INCLUDED: | Mugs 80 mm |
| COLOR: | Grey |
| WARRANTY: | 12 months on appliance, 3 months on heaters |
Packing:
| SALES UNIT: | 1 pc |
User manual:
Read the OPERATING INSTRUCTIONS before starting work.
copyright
